9m Carbon Steel Tube Laser Cutting Machine CE Certification

Brand Name : bcx

Model Number : bcx—005

Certification : ce

Place of Origin : China

MOQ : 1

Price : 1500US dollars

Payment Terms : T/T

Supply Ability : 99

Delivery Time : 8

Packaging Details : specialized shatterproof packing

Product name : tube laser cutting machine

Model : bcx—005

Brand : bcx

Material : SS and carbon steel

length of pipe : 9m

Contact Now

laser tube cutting machine metal cutter for SS and carbon steel

Functions
 cut off round, square pipes diameter 20-200mm, length of pipe 9m.
 Cut carbon steel, mild steel, galvanized steel, stainless steel, brass, aluminum, gold, silver, tatinum laser cutting machine buy.
 Main configurations
 1. IPG fiber laser source.

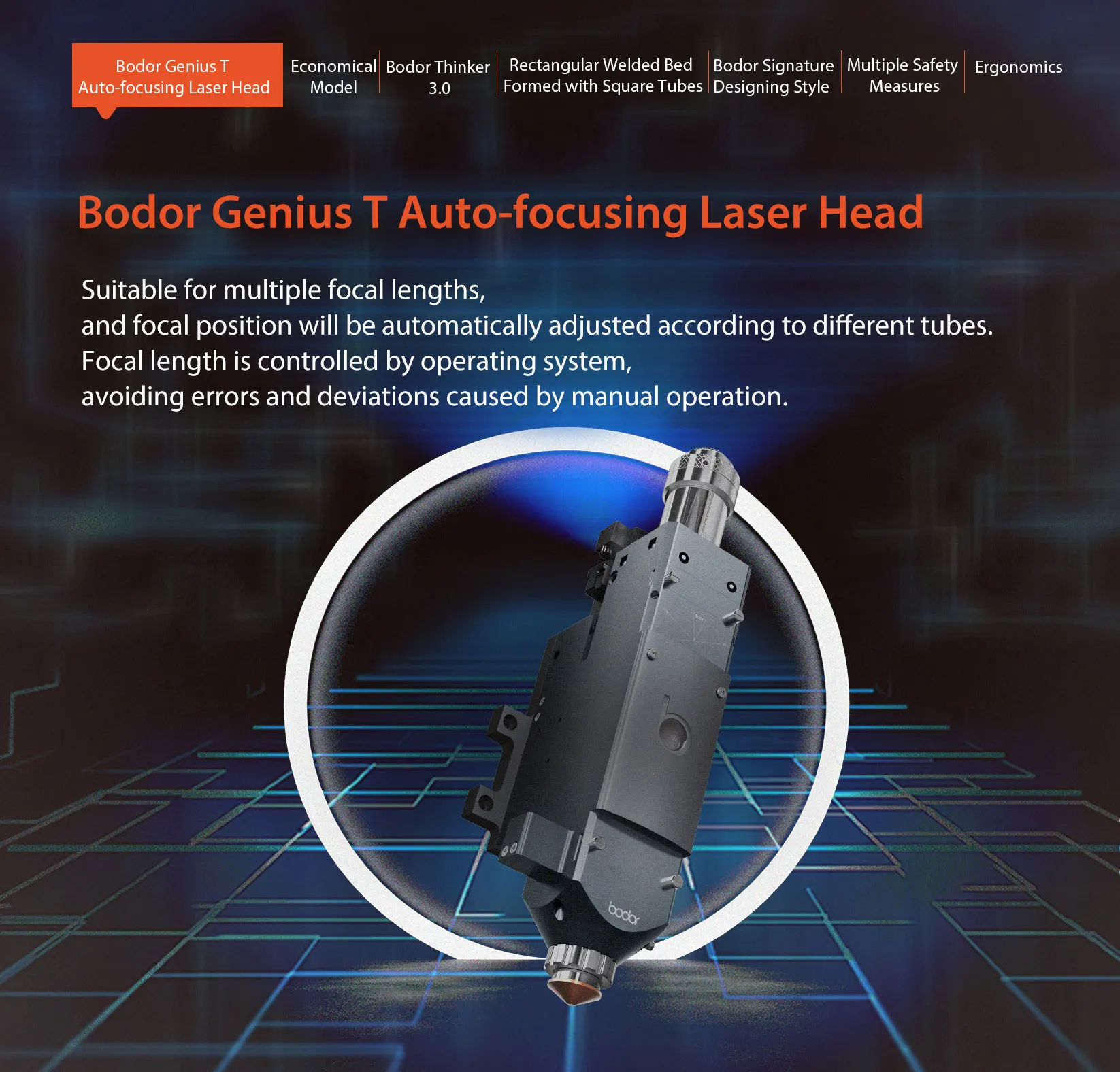

 2. Auto focus laser head.
 3. Electrical clamps, holding diameter of pipe: 20-200mm.
 5. Yaskawa servo motors from Japan.
 6. Transmission: racks and pinions.
 7. Schineider electrical components from France.
 8. Auto-oiling system.
 9. water chiller.
 fiber laser cutting machine
 Optional configuarations
 1. Length of pipe cutting: 9m, 3m, 4m.
 2. Diameter of pipe: 20-300mm.
 3. Auto feeding system of material.

Technical parameters

Model	K230	K360
Working Area	10000×3200×2100mm	10000×3500×2100mm
Laser Output Power	3000w/2000w/1500w/1000w
X/Y-axis positioning accuracy	0.05mm
X/Y-axis repositioning accuracy	0.03mm
X/Y-axis Max. linkage speed	60m/min

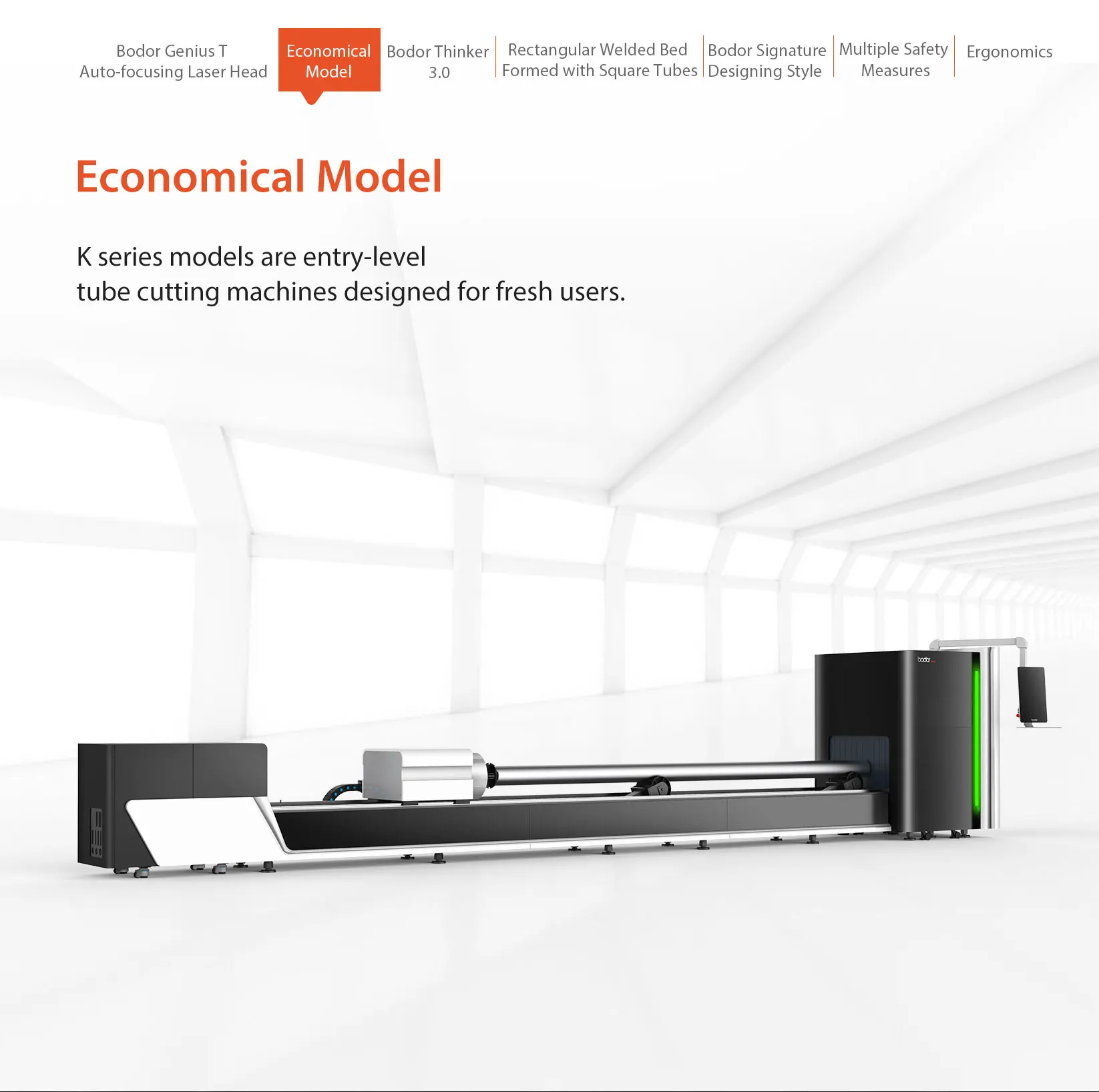

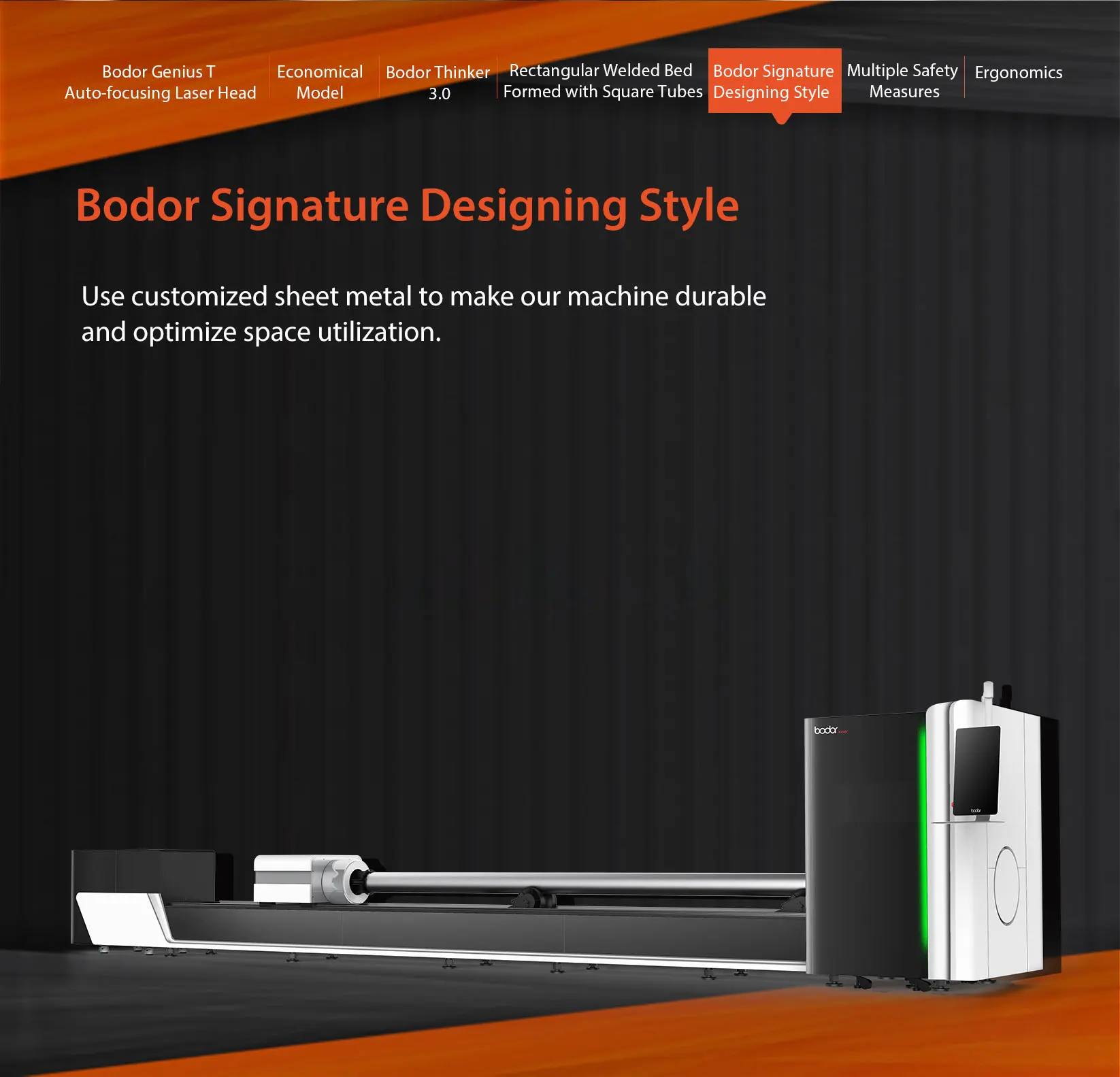

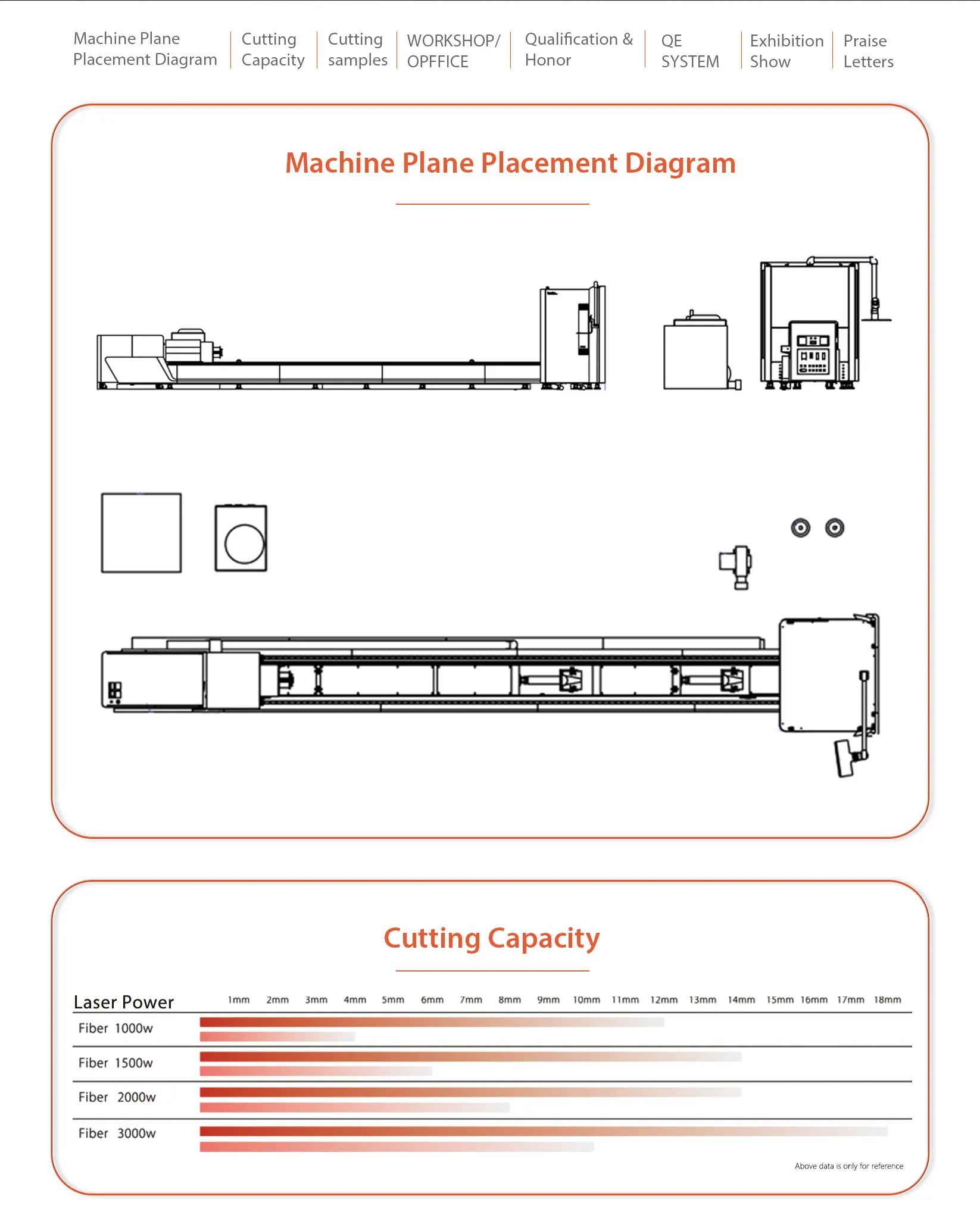

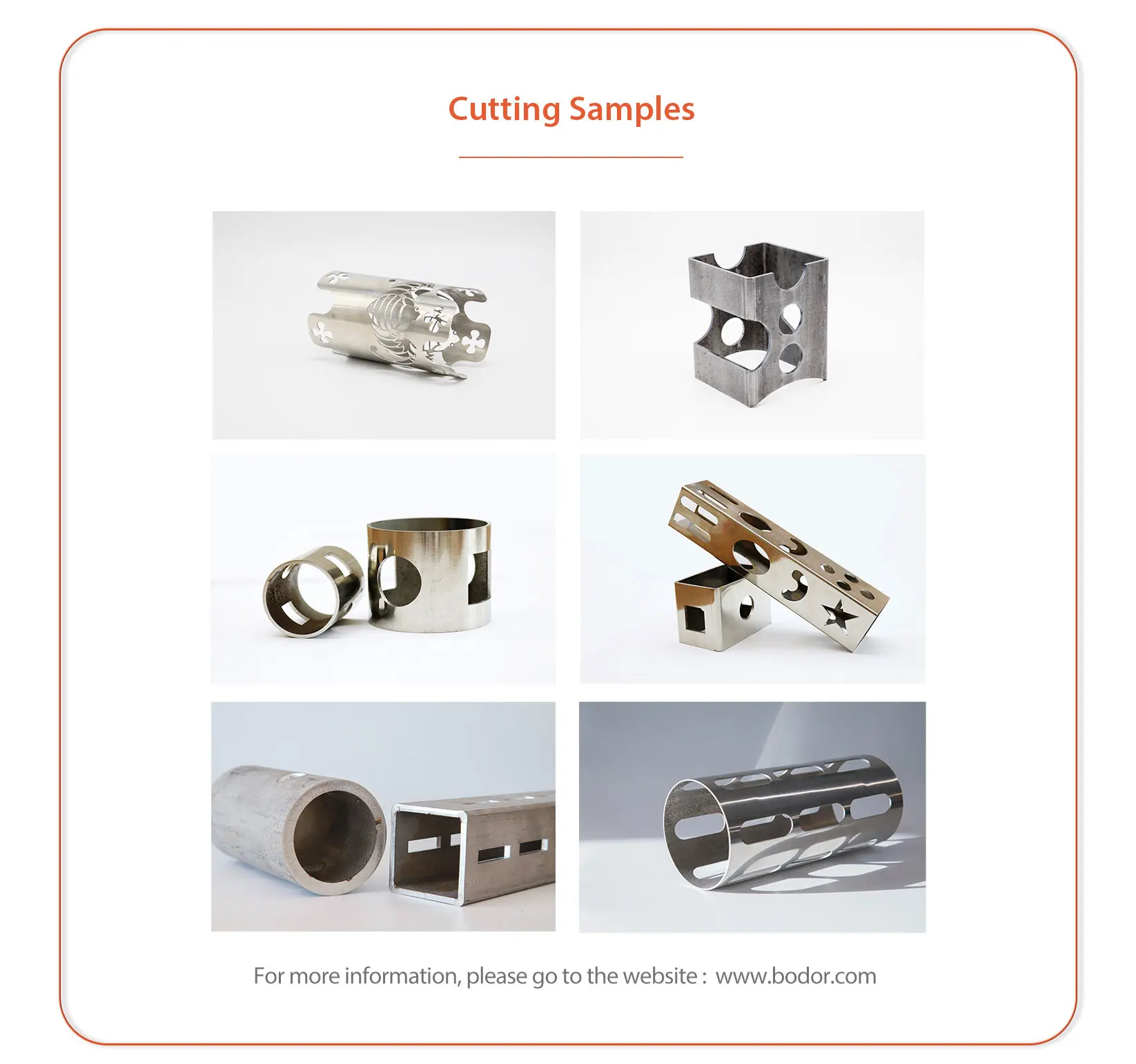

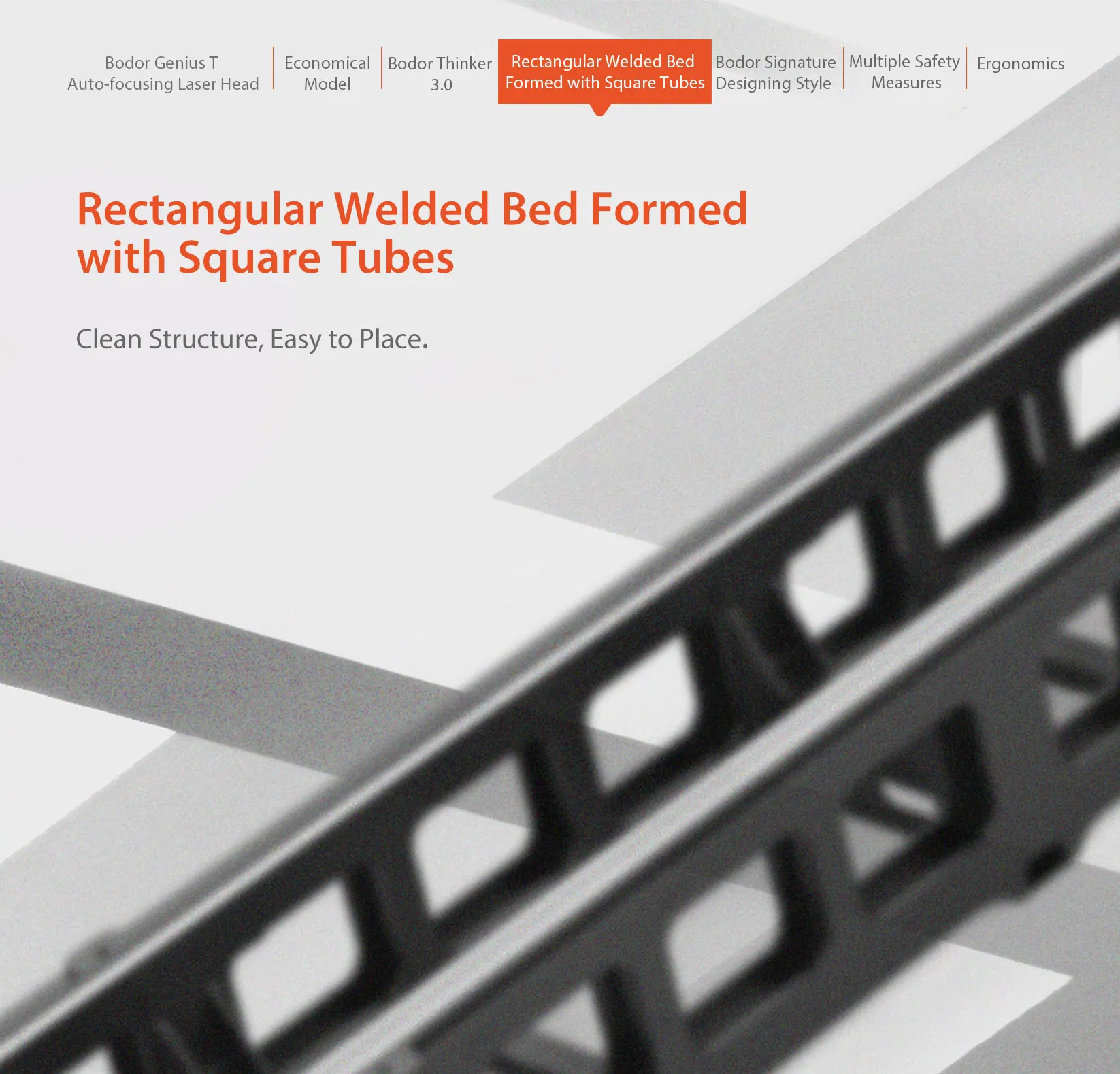

Detailed Images

9m Carbon Steel Tube Laser Cutting Machine CE Certification
